Steganography Class Reference

#include <steganography.hpp>

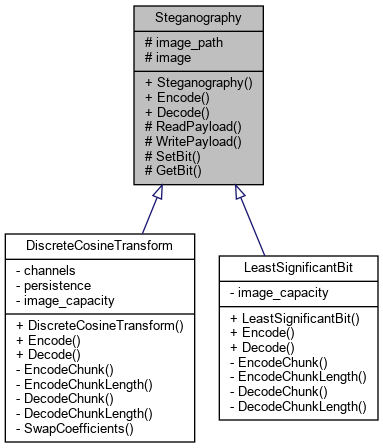

Inheritance diagram for Steganography:

Collaboration diagram for Steganography:

Public Member Functions
	Steganography (const boost::filesystem::path &image_path)
virtual void	Encode (const boost::filesystem::path &payload_path)=0
virtual void	Decode ()=0

Protected Member Functions
std::vector< unsigned char >	ReadPayload (const boost::filesystem::path &payload_path)
void	WritePayload (const boost::filesystem::path &payload_path, const std::vector< unsigned char > &payload)
template<class T >
void	SetBit (T *target, const int &bit, const int &value)
template<class T >
int	GetBit (const T &target, const int &bit)

Protected Attributes
boost::filesystem::path	image_path
cv::Mat	image

Detailed Description

Abstract base class which each steganography technique will extend.

Constructor & Destructor Documentation

Steganography()

Steganography::Steganography ( const boost::filesystem::path &  image_path )

inlineexplicit

Default constructor for Steganography class, will be overridden for different steganography techniques.

Parameters

image_path

The path to the input carrier image.

Member Function Documentation

Decode()

virtual void Steganography::Decode ( )

pure virtual

Decode Function that must be overridden by the subclass which decodes a payload from the carrier image using the steganographic technique defined in the subclass.

Implemented in DiscreteCosineTransform, and LeastSignificantBit.

Encode()

virtual void Steganography::Encode ( const boost::filesystem::path &  payload_path )

pure virtual

Encode Function that must be overridden by the subclass which encodes a payload into the carrier image using the steganographic technique defined in the subclass.

Parameters

payload_path

Path to the file we are encoding.

Exceptions

EncodeException

Thrown when encoding fails.

Implemented in DiscreteCosineTransform, and LeastSignificantBit.

GetBit()

template<class T >

int Steganography::GetBit ( const T &  target, const int &  bit  )

inlineprotected

Get the n'th significant bit of a generic type.

This function is designed to get the n'th significant bit of integer/char types. It assumes that it is being used correctly; there is no incorrect input detection.

Template Parameters

target

"Any" type which works with bytewise operators, the target to set the but of.

Parameters

bit	Which bit to get in the target.

Returns

The n'th significant bit.

ReadPayload()

std::vector< unsigned char > Steganography::ReadPayload ( const boost::filesystem::path &  payload_path )

protected

Read all the bytes from a payload file into a vector.

Parameters

payload_path

The path to the file to read as the payload.

Returns

A vector containing all the bytes from the payload file.

SetBit()

template<class T >

void Steganography::SetBit ( T *  target, const int &  bit, const int &  value  )

inlineprotected

Set the n'th significant bit of a generic type.

This function is designed to set the n'th significant bit of integer/char types. It assumes that it is being used correctly; there is no incorrect input detection.

Template Parameters

target

"Any" type which works with bytewise operators, the target to set the bit of.

Parameters

bit	Which bit to set in the target.
value	The value the target bit will be set too.

WritePayload()

void Steganography::WritePayload ( const boost::filesystem::path &  payload_path, const std::vector< unsigned char > &  payload  )

protected

Write all the bytes decoded from the carrier image to a file.

Parameters

payload_path	The path to the file that will be created.
payload	The payload decoded from the carrier image.

Member Data Documentation


Steganography::image

protected

An in memory copy of the input image in which we will embed the data.

image_path

Steganography::image_path

protected

The path to the carrier image stored on disk. This image will not be modified.

---

The documentation for this class was generated from the following files:

• include/steganography.hpp
• src/steganography.cpp
