Introduction

• Things are starting to get interesting now
  • We have been developing systems that do multiple things at once
  • Looked at strategies for dealing with Input driven tasks
• Time for some Theory

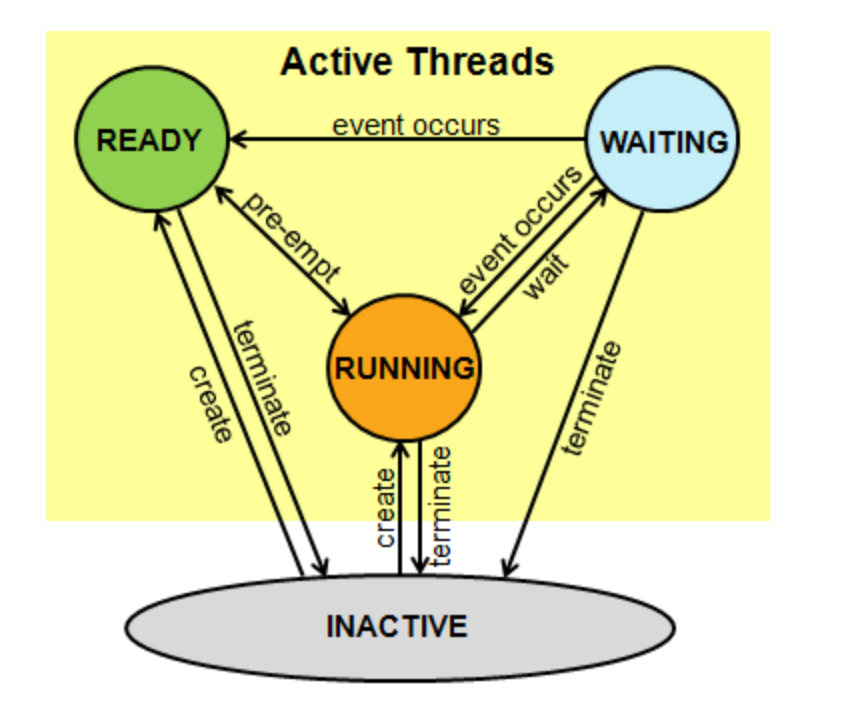

Thread States

Thread States

• Running: Currently running thread
• Ready: Threads that are ready to run
• Waiting: Threads waiting for an event to occur
• Inactive: Threads that are not created

So How do we switch between Threads

• Only one task can one at a time
• We need some mechanism to switch between tasks
• This is the responsibility of the Scheduler

The Scheduler

• Part of the Kernel responsible for determining which task runs next
• At each Tick the scheduler evaluates:
  • What tasks are Ready to be Run
  • Which task should run next

Scheduling Criteria

• Utilisation (ie CPU / IO Usage)
• Throughput (completing more processes in a given time)
• Turnaround (Time taken to complete processes)
• Response (Delay in user interaction)
• Deadline (Hard or Soft Realtime)
• Priority (Some Processes are more important than others)
• Predictability (less variation in performance)

Scheduler Concepts

• Wait Time: Time between a process being made ready to run and it starting
• Run Time: Length of time a job runs for
• Turnaround Time: Time between a process being make ready and it completing

Properties of the Task

• We also have to deal with different types of task
  • IO Bound: Deal mainly with User Input
  • CPU Bound: Deal mainly with processing.
• We may also have Tasks that depend on each other.

Non Preemptive Scheduling (Cooperative Multitasking)

• Processes co-operate to make best use of the CPU
• Each task will keep running till it decides to give up or blocks
  • New Higher Priority tasks will only get access when the CPU is free
  • Events are handled by interrupts

Non Preemptive Scheduling

• Advantages:
  • Reduces Interrupt latency
  • Can make it easier to use shared resources
• Disadvantages:
  • responsiveness is low
  • non deterministic

First Come First Served

• First Come First Served (or FIFO)
  • Processes are added to the queue in order
  • When a process completes, the next one is executed.

FCFS Example

FCFS Example:

FCFS Example: Task 1

FCFS Example: Task 2

FCFS Example: Task 3

FCFS Summary

• Average Waiting Time:

  • \[\frac{(0 + 4+ 13)}{3} = 5.66\]

• Average Turnaround Time:

  • \[\frac{(5+14+14)}{3} = 11.0\]

First Come First Served:

• Advantages:
  • Low scheduler overhead
  • Excellent when the program only consists of short, tasks
• Disadvantages:
  • Low Throughput ?
  • How to deal with blocking tasks?

Shortest Job First

• Aims to improve scheduling by giving priority to short lived tasks
  • Minimises average waiting time for completion.
  • How do we predict how long a job will take?
  • What happens if we have lots of short processes
    • Can starve longer processes of resources.

SJF

SJF Example:

SJF Example: Task 1

SJF Example: Task 3

SJF Example: Task 2

SJF Summary

• Average Waiting Time:

  • \(\frac{(0 + 3+ 5)}{3} = 2.66\)

• Average Turnaround Time:

  • \(\frac{(5+4+15)}{3} = 8.0\)

SJF Starving Longer Processes

• A Problem with SJF is it can starve longer running processes
• If many short processes come in, then they are given priority
• This can be a problem with repeating tasks. (Especially if added to a queue)

Task

• Using the folloiwng processes. Calculate Wait, and Tunraround time for both SJF and FCFS

Preemptive Scheduling

• RTOS use a Pre-emtive scheduling approach
• Based on the Priory of Tasks
  • Task with the highest priority is the next to be executed
• Schedule can also interrupt a tasks execution

Preemptive Scheduling

• Task with the highest priority is run first
• If there are tasks with equal priority the scheduler chooses which to run

Preemptive Scheduling

• Advantages:
  • Tend to have increased responsiveness
  • Task response time is limited
• Disadvantages:
  • Overhead in task switching
• Much harder to deal with shared resources.

The Scheduling Quantum

• The Unit of time which the scheduler is based on
• Hardware generates a signal at a set frequency (a tick)
• A Quantum is based on a set number of ticks

Picking a Quantum Size:

• Very difficult
  • Large Quantum may starve small processes depending on the Scheduling
  • Small Quantum will cause overhead
  • Choice may also depend on the aspects of the system
  • Some mathematical black magic needs to happen here.

Round Robin Scheduling:

• Processes are added to a Queue (similar to FCFS)
• Execution is broken into “slots” (A Quantum)
  • Each process runs for a specified length of time
• At each scheduling interval, the next process in the queue is picked

Round Robin Scheduling

• Each Process gets an equal turn at execution

Roudn Robin Scheduling: Example

Round Robin Scheduling

Round Robin Scheduling

Round Robin Scheduling

Round Robin Scheduling

Round Robin Scheduling

Round Robin Scheduling

• Advantages:
  • Starvation Free, All process get an equal opportunity to run
  • Decent Throughput.

• Disadvantages:
  • Higher overhead, due to context switching
  • Higher overall Turnaround and Waiting time.

Round Robin with Priority Scheduling.

• Default Scheduler used in MBED / CMSIS RTOS
• As Round Robin. However higher priority tasks are favoured.
• It is also possible for a high priority task to Interrupt the current process.

Round Robin and the Quanum Size:

• The Quantum size can have an effect on the scheduling efficency.
• Lets see what happens in our example if we use a quantim size of 2

Round Robin and the Quantum Size:

TODO: Add Photo

Round Robin Tasks

• Calculate Turnaround and Waiting times for the following processes
  • Using a Quantum of 1
  • Using a Quantum of 2

Priority in Scheduling

• Static: Priority of task is Set at compile time
  • Advantage: Predictability
  • Disadvantage: May suffer propriety inversion
• Dynamic: Each task can change its priority
  • Advantage: Can help avoid Priority Inversion

Priority Inversion

• A Low Priority task blocks an important one
  • Usually based around resource sharing
  • Low priority task Locks the resource
  • High priority needs access to the resource but cannot due to the Lock.
• Difficult to detect and debug.

Priority Inversion

• Three Tasks
  • Task One: High Priority
  • Task Two: Medium Priority
  • Task Three: Low Priority
• Lets assume that there is also a shared resource on the system.
  • For Thread Safety, this resource can be “Locked” buy the thread using it.

Priority Inversion

• Thread One, Starts and Gains Control of the Shared Resorce.
• Thread Two, Starts: Prempting Thread one to become the running thread
• Thread Three: Starts, Prempts then is Blocked when it trys to access Shard Resource.
  • Threfore Thread Three put in Waiting State
• Thread Two is the next Available task, so runs to completion
• Thread One, then runs untill the resource is unlocked
  • At this point Thread Three can Prempt and finish.

Priority Inversion

Priority Inversion Solution

• Temporarily raise priority of task 3 to that of task one
• This allows the task to complete, and release the lock on the resource.

Setting Thread Priority

• Lets Examine Thread Priority with an Example

Thread Priority Code

int main() {

  // put your setup code here, to run once:
  threadOne.start(led1Thread);
  threadTwo.start(led2Thread);
  threadThree.start(led3Thread);

  wait_ms(osWaitForever);
}

Running with default priority

• Everything Behaves as expected.
• All tasks are given Equal opportunity to run

How does this fit with our Round Robin?

SPARKBOARD!

Modifying the Priority of the Threads

• Set our first task to a Different Priority
• Visually this makes no difference.
  • What about the Print Statements

What about the Scheduler Now

SPARKBOARD!

What about Blocking Tasks?

• What happens if one of our threads runs a high intensity task?
• Sheduler “Tick” is ~1ms

void blockingThread(){
 while(1){
   led1 = !led1;
   for (int x=0; x<10000; x++){
     //Delay of Approx One Second
     wait(0.0001);
   }
 }
}

Changing the Prioirty

• Standard Prioirity: Runs as Before
• Low Prioirty: Runs as Before
• High Prioirty: No other Threads get a chance to run

Changing the priority

threadOne.set_priority(osPriorityLow);

And the Scheduler Now

SPARKBOARD

Bonus Example:

• There is a second thread priority example on Github.
• Try running the code and see what effect priority has here.

Summary

• This session we discussed scheduling algorithms
  • Preemptive Round Robin is used
• Also had a look a threading priority
• Next we will look at issues with sharing data in a multi threaded environment.
